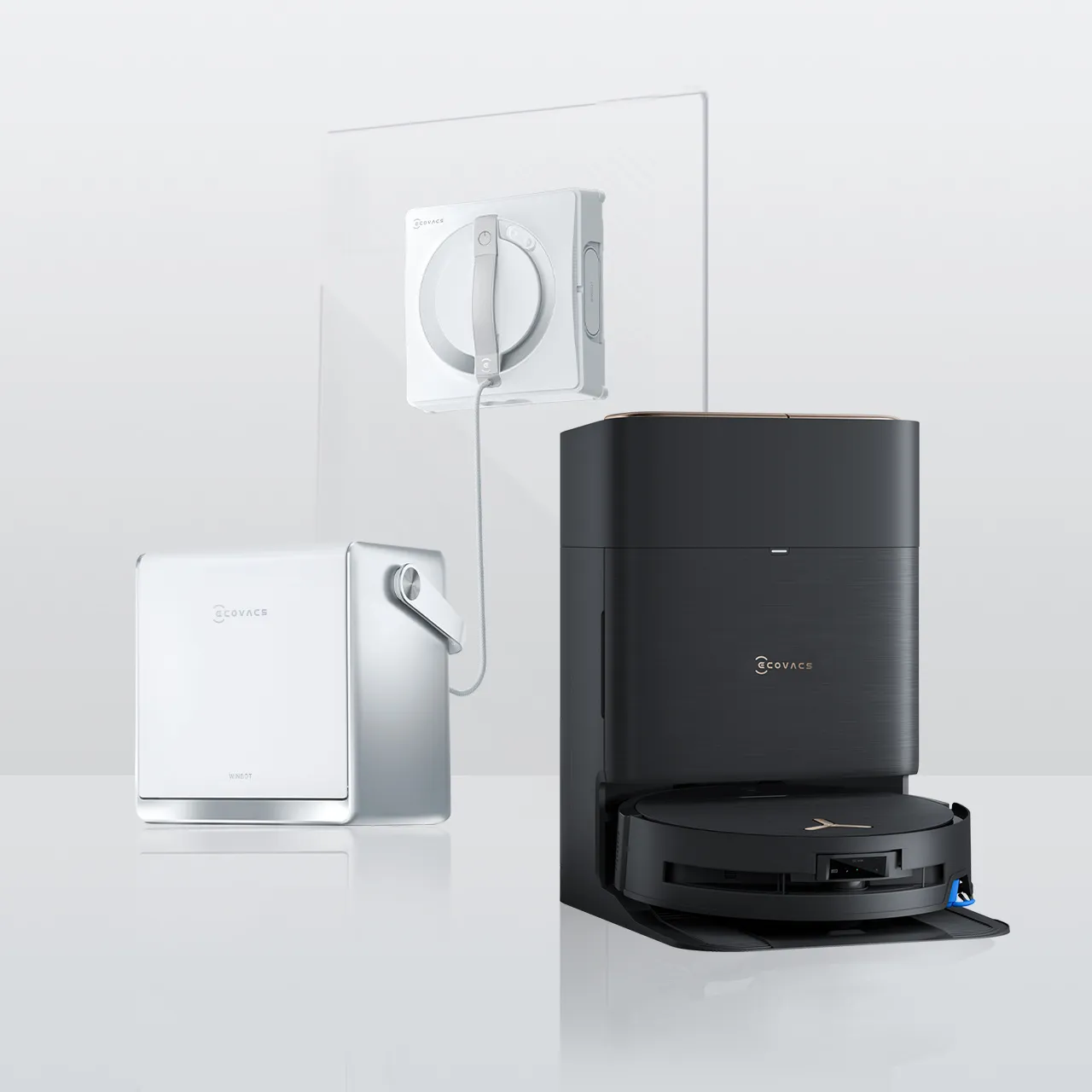

DEEBOT X9 PRO OMNI+WINBOT MINI

Bundle: New Robotic Vacuum DEEBOT X9 PRO OMNI with Boosted Large-Airflow Suction Technology and robot window cleaner (MINI)

Key Features

Key points:

DEEBOT X9 PRO OMNI:

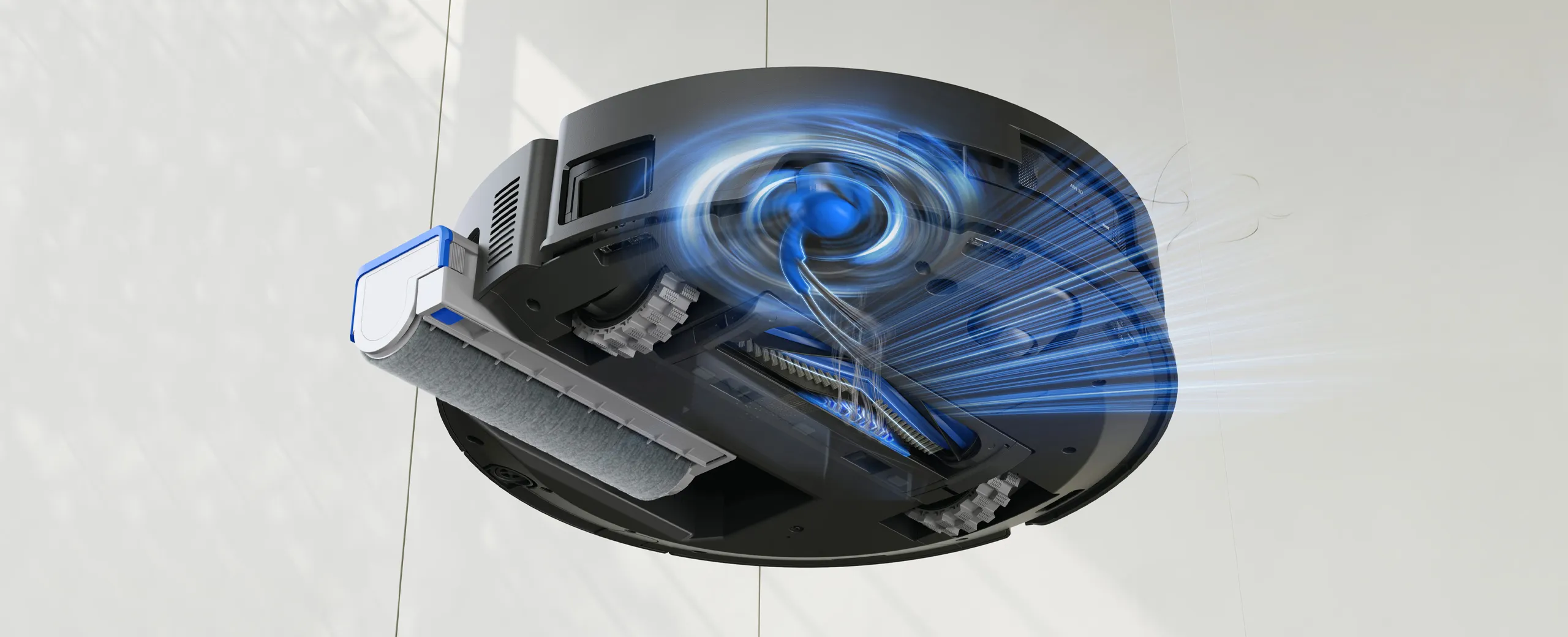

BLAST (Boosted Large-Airflow Suction Technology)
• BLAST generates an unprecedented airflow rate of 16.3L/s, as well as a sufficient 16,600Pa suction power
• 137.6% increase in carpet dust removal rates

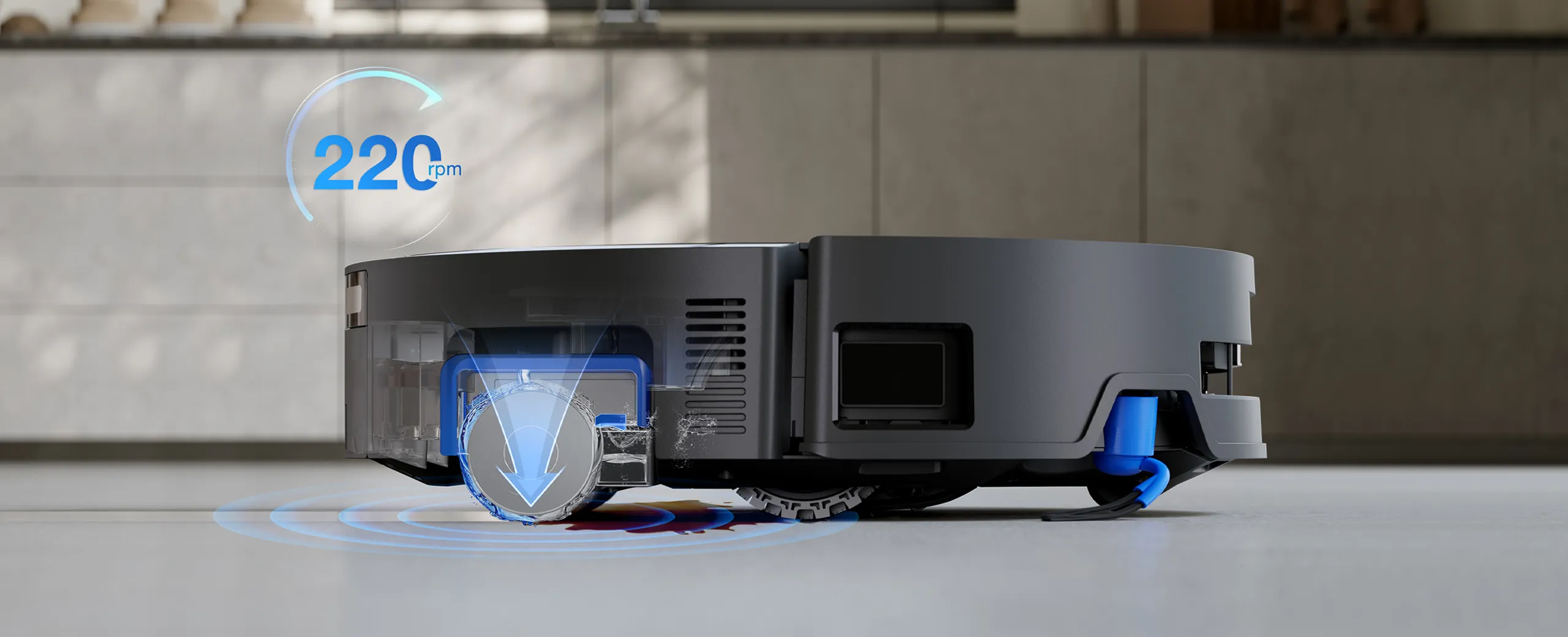

OZMO ROLLER Instant Self-Washing Mopping Technology
• higher mopping pressure (3,700Pa) +up to 220 rpm rolling speed
• thorough stain removal while preventing streaks and cross-contamination
AI Stain Detection 2.0 & Triple Lift with Precision Dry-Wet Separation
• The AI Stain Detection 2.0 analyzes mess types intelligently
• Triple Lift System adapts to diverse cleaning challenges with Precision Dry-Wet Separation

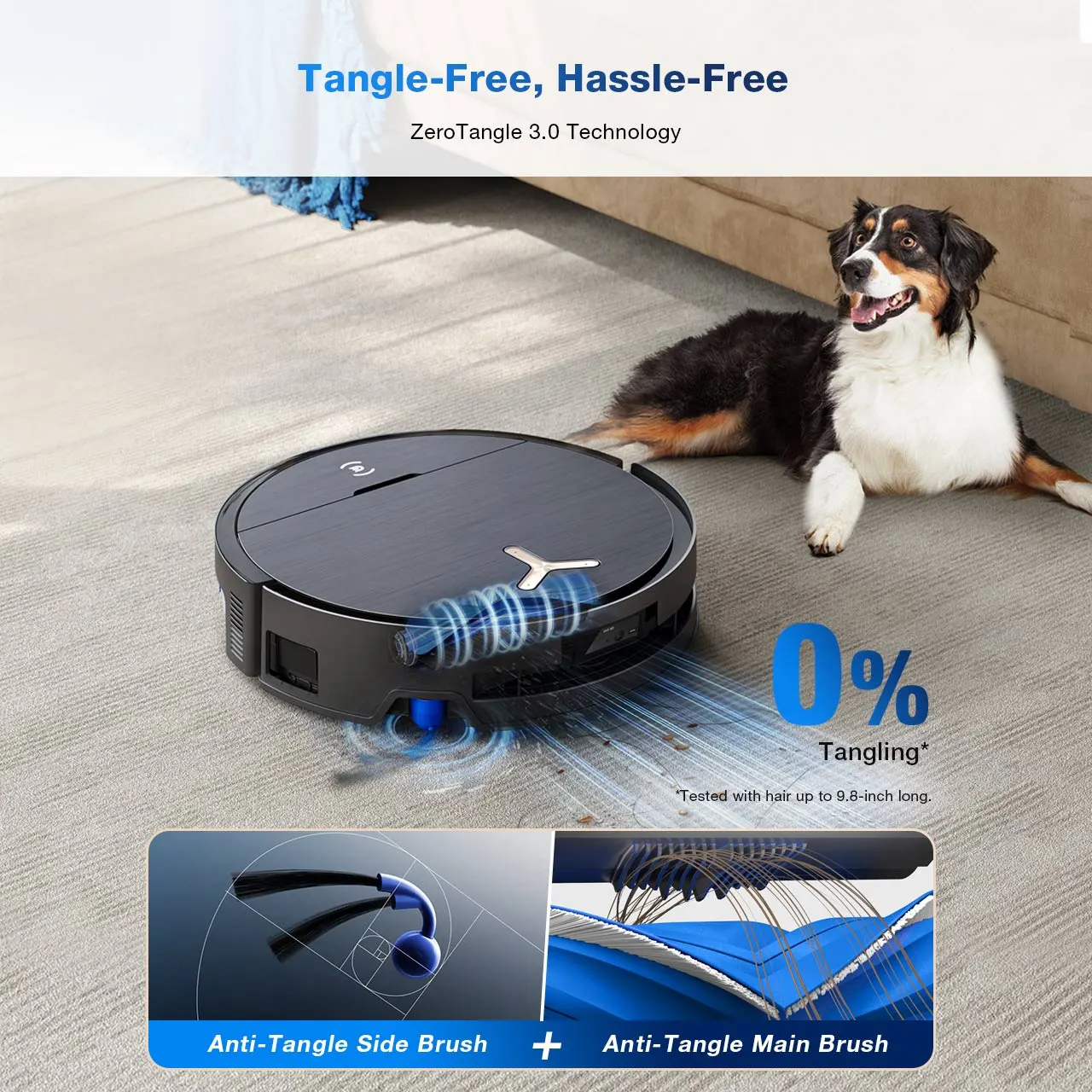

ZeroTangle 3.0 Anti-Tangle Technology
• it features the ARClean Anti-Tangle Side Brush and Cyclone-Directed Anti-Tangle Main Brush
• effectively eliminating hair tangles for uninterrupted performance.
TruEdge 2.0 with 3D Edge Sensor
• roller mop to extend dynamically during edge cleaning
• maximize the coverage at edges and corners
AIVI 3D 3.0
• Vision AI + 3D sensors detect obstacles instantly.
• Cleans edges tightly, avoids moving objects like pets instantly.
Industry first EV-Grade Pouch Battery
• 2.4 times battery life and 6400 mAh robust power
Upgraded OMNI Station with Innovation
• Temperature-Controlled Mop Washing 2.0
• 63°C Hot Air Drying

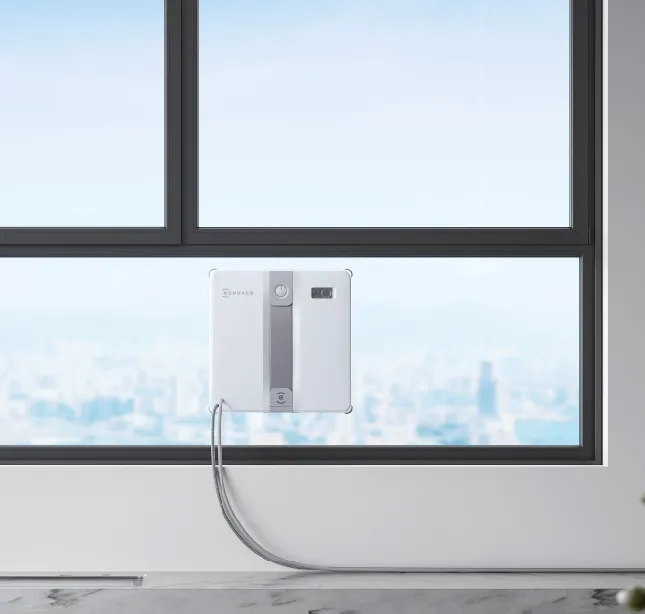

WINBOT MINI:
Impeccably compact design for hard-to-reach scenarios

• Redesigned from the inside out to achieve minimal size and fit into tight spaces
• Adapts flexibly to various narrow window cleaning scenarios
• Space-saving and easy to store

Compact yet powerful cleaning performance
• Ultrasonic atomization spray
• Achieve ultimate edge cleaning with up to 99.5% coverage
• Classic cleaning cloth design

9-stage protection for peace of mind
• 6-hardware-based fall protection measures
• 2-stage intelligent fall protection
• Accidental damage insurance

Smart cleaning for effortless living
• WIN-SLAM 3.0 algorithm
• Customized cleaning mode choices
• Accurate control with intutive ECOVACS HOME App

01
Revolutionary Cleaning Power: Ultimate Convergence of BLAST and OZMO ROLLER

Revolutionary Cleaning Power: Ultimate Convergence of BLAST and OZMO ROLLER


Unmatched Vacuuming Efficiency Redefined by BLAST Solution Mopping Technology

Unmatched Vacuuming Efficiency Redefined by BLAST Solution Mopping Technology

BLAST (Boosted Large-Airflow Suction Technology) redefines vacuuming efficiency by prioritizing maximized airflow over traditional suction power alone. Through its enhanced aerodynamic design and industry first EV-Grade Pouch Battery with 2.4 times battery life and 6400 mAh robust power, BLAST generates an unprecedented airflow rate of 16.3L/s, as well as a sufficient 16,600Pa suction power, with 49% greater airflow volume compared to conventional systems, dramatically improving deep-cleaning performance—evidenced by a 137.6% increase in carpet dust removal rates. While being engineered for airflow dominance, the system retains robust suction strength, achieving a 100% pickup rate for large debris like cereal-sized particles, excelling in both fine dust extraction and heavy-duty cleaning tasks.
Unlock Premium Floor Cleaning Performance with OZMO ROLLER Mopping Technology

Unlock Premium Floor Cleaning Performance with OZMO ROLLER Mopping Technology

The DEEBOT X9 PRO OMNI excels in the floor care with the OZMO ROLLER Instant Self-Washing Mopping Technology, delivering 16 times*¹ higher mopping pressure (3,700Pa) than leading dual-plate and vibrating flat mop systems. The clean water is delivered back to the mop to keep the mop renewed after the wastewater is scraped off. With up to 220 rpm rolling speed, this equates to 220 high-speed scrubbing and rinsing actions per minute, effectively preventing streaks and cross-contamination. With a smaller contact area, the mop contains more concentrated pressure to achieve a significant cleaning effect on stains.
Powered by ARClean Anti-Tangle Side Brush,​ ZeroTangle 3.0 achieves truly tangle-free cleaning​ ​

Powered by ARClean Anti-Tangle Side Brush,​ ZeroTangle 3.0 achieves truly tangle-free cleaning​ ​

ZeroTangle 3.0 Anti-Tangle System, combining the newly upgraded ARClean Anti-Tangle Side Brush and Cyclone-Directed Anti-Tangle Main Brush, delivers effortless hair and debris management. The golden spiral design with inward-curved bristles prevents tangling while boosting cleaning efficiency. Additionally, the 45° V-shaped bristle configuration prevents hair trapping, while the spiral main brush and comb teeth ensure smooth untangling.
Compact but Crystal Clear

Compact but Crystal Clear

Impecably compact design for hard-to-reach scenarios

Impecably compact design for hard-to-reach scenarios

The ECOVACS engineering team has made highly integrated internal structural adjustments to WINBOT MINI, slimming it down to the fullest. This compact and handy design makes it perfect for cleaning narrow windows and those hard-to-reach areas.
Redesigned from the inside out to achieve minimal size and fit into tight spaces

Redesigned from the inside out to achieve minimal size and fit into tight spaces

With WINBOT MINI, ECOVACS is introducing the most compact robotic window cleaner ever. The WINBOT MINI boasts a remarkable 30% reduction in thickness and a 37% smaller size compared to its predecessor. ECOVACS achieved this feat of engineering with a highly integrated internal structure that optimizes every inch of space, a bumper-less design shrinks the body size by 1.1in, optimized dual air ducts reduce thickness by 0.12in and an all-new compact-sized fan contributes to a smaller and lighter design. With a single side length of only 8.46in and a thickness of 2.17in, the WINBOT MINI is ideally sized to clean narrow windows and those hard-to-reach areas.
Adapts flexibly to various narrow window cleaning scenarios

Adapts flexibly to various narrow window cleaning scenarios

WINBOT MINI's uniquely small, thin and light design gives it unprecedented flexibility and adaptability, allowing it to reach areas other robotic window cleaners can't. The WINBOT MINI can now clean windows with guardrails and security bars, small windows with a single side length less than 30cm, and windows with handles (the distance between the handle and the glass is around 50 - 80mm). The minimized body size design of WINBOT MINI allows it to easily navigate the complex window structures found in modern homes with ease. Users will enjoy improved cleaning efficiency and reduced risk of accidents compared to traditional methods.
Compact yet powerful cleaning performance

Compact yet powerful cleaning performance

WINBOT MINI shows that power can come in small packages. Its compact design doesn't compromise cleaning performance – users get sparkling clean windows with the same efficiency and effectiveness as larger models.
*¹"16 times" refers to the DEEBOT X9 PRO OMNI's OZMO ROLLER Mopping exerting 16 times the cleaning pressure compared to dual-plate mopping. The data is from the ECOVACS laboratory. Specific results are subject to actual home use.

DEEBOT X9 PRO OMNI Robotic Vacuum (16600 Pa Suction, OZMO Roller Mopping, ZeroTangle)

Navigation Type
dToF
Obstacle Avoidance
RGBD+camera light
Edge sensor
TruEdge 3D Edge Sensor
YIKO
YIKO-GPT
Integrated voice control（Y/N）
Yes
mopping type
OZMO ROLLER
Cleaning mode
vacuum,vacuum and mop,vacuum first and then mop, mop（zone cleaning）
Vacuum port type (straight suction port/main brush)
main brush
Fan suction adjustment
manual,automatic
Fan pressurization (Y/N)
Yes
Dust box capacity(L)
0.22
Dust Box filter（Filter Net /Cotton/Filter）
Filter Net ,Antibacterial Filter
Dust box detection（Y/N）
No
Washable filter（Y/N）
Yes
filter level
M6
automatic mop cleaning
Yes
Main brush type
floating
Extendable Side Brush
No
Extendable Mop
Yes
ARClean Anti-Tangle Side Brush
Yes
Main brush material
brush
Video Manager
Yes
Tangle detection （Y/N）
Yes
Anti-tangle technology
Zero Tangle 2.0
AI large particles strategic cleaning
Yes
ZeroTangle（Y/N）
Yes
Ultrasonic carpet detection（Y/N)
Yes
auto refill with hot water(station to deebot)
Yes
AI stain detection（Y/N)
Yes
Dirty water tank detection
Yes
Dirty water tank capacity（ml）
90
Carpet pressurization（Y/N)
Yes
Clean water tank capacity（ml）
110
Mop pressurization (Y/N)
Yes
auto refill (station to deebot)
Yes
mop diameter(mm)
175
Hot water self-washing
Yes
Mop water content adjustment (Low Medium High）
50 levels
Barrier crossing ability (mm)（with mop）
20
automatic mop lifting (mm)
10
Auto Refill and Drain
No
Station actively self-cleaning
Yes
Auto detergent dispenser
Yes
dust bag detection（Y/N）
Yes
Dust colletion duration
5+2+5
dust bag capacity（L）
3
automatic mop cleaning
Yes
warm water mop cleaning（Y/N）
Yes
warm water mop cleaning
Y,75℃
dirty water tank capacity（L）
2.2
clean water tank capacity（L）
4
water tank detection (Y/N)
Yes
water tank detection (Y/N)
Yes
Sewage detection（Y/N）
Yes
Heating module（220V/110V）
220
Mopping area based on water tank capacity（m²）
400
low water level alert（Y/N）
Yes
hot air dry
Yes
Temperature-controlled mop washing
Yes
hot air drying duration
2h( default)/3h/4h
Detachable cleaning tank（Y/N）
Yes
vacuum level（MAX）（Pa）
16600
noise-standard mode -sweep （dBA)
64.5
noise-standard mode-sweep&mop （dBA)
65.7
Noise of mop washing（dBA)
64.6
dust collection noise（dBA)
79.2
Battery type
Li-ion（Power battery）
Battery capacity（mAh）
6400
Number of cells
1
charging time(H)
3H6min
Charging method (fast charging/normal charging)
fast charging
working time on hard floor-silent mode（sweep）(min)
252
working time on hard floor-standard mode（sweep）(min)
196
working time on hard floor-standard mode（sweep&mop）(min)
158
DEEBOT rated power(W)
110
DEEBOT working voltage（V）
14.4
Deebot dimension (wide/depth/height mm)
353*351.5*98
Net weight (KG)
12.89
Gross weight(KG)
16.51
station dimension(wide/depth/height mm)(without base)
338*276*500
station dimension(wide/depth/height mm)(with base)
338*459*500
Outer Carton Dimension(wide/depth/height mm)
560*380*408
Minimum Window Size
8.66*9.84 (in)
Applicable Window
all types of flat windows
Auto Spray (Y/N)
Yes
Manual Spray (on APP)
Yes
Spray Width（cm）
8.5
Spray Length (front)（cm）
10
Spray Uniformity (variance）
/
Ratio of Spray Coverage
/
Max Accumulated Spray Area of Water Tank（Fast Mode, ㎡）
25
Method of Spray
Ultrasonic Water Spray
Self-adaptive Spray Volume (Y/N)
Yes
Number of Spray Nozzles
4
Water Tank Empty Reminding (Y/N)
Yes
Frame Distance Detection (Y/N)
Yes
Water Tank Capacity（ml）
60
Cleaning Mode
Fast Cleaning Mode, Thorough Cleaning Mode, Spot Cleaning Mode
Intelligent Route Planning
Yes
Power-off protection
Yes
Auto Back to Start Point
Yes
Voice Report
Yes
Length of Power cord (m)
4.7
Length of Safety Rope (m)
3.3
Cleaning Solution (ml)
230
Cleaning Cloth Size (m㎡)
215mm*215mm
Robot Size (mm)(l/w/h)
215*215*55
Weight of Robot (kg)
1.3±0.1
Charging Time (H)
≈3
Working Speed (min/㎡)
3min±10s（Fast Mode）
Battery Specifications (Type, mAh)
Lithium 3000mah
Power off protection time（Full charge）
30min
Gross Weight of Carton Box (Kg)
2.8
Size of Carton Box (mm)(l/h/w)
420*255*85
Split Drive Tech (Y/N)
No
Intelligent Climbing System
Yes
Suction Power while moving（Pa）
3200
Max. Suction Power（Pa）
7500
Path Planning Tech
WIN-SLAM 3.0
Cleaning Mode
Fast Cleaning Mode Thorough Cleaning Mode Spot Cleaning Mode
Return to Initial Spot(Y/N)
Yes
Min. Detectable Height of Obstacle（mm）
4
Min. Detectable Height of Frame（mm）
3
Frame Detection (Y/N)
Yes
Breakpoint Continuation (Y/N)
Yes
APP Control
Yes
Manual Control (on APP)
Four directional control
Min. Window Size (cm)
22*25
Applicable Window Type
all types of flat windows
Applicable Frame Type
with Frame & Frameless
Min. Glass Thickness (mm)
3
Dimension of WINBOT(mm, L*W*H)
215*215*55
Battteries Capacity (Type, mAh)
3000
Battery Nominal Voltage (V)
3.6
Typle of Blower Fan
Brushless Motor
Power-off Protection Duration (min)
30
Battteries Capacity (Type, mAh)
3000
Weight of WINBOT (kg)
1.3±0.1
Weight of Batteries (g)
55g±5g(in-built battery)
Number of Batteries
1
Rated Power (W)
90
Safety Battery Charging Time (H)
3
Rated Voltage (V)
24
Cleaning Efficiency in Default Mode (1X1㎡)
3min±10s（Fast Mode）
Battery Life (min)
unlimited
Dimension of Wiping Pad (LengthxWidth mm)
215*215
Total Lenght of Power Cable（m）
4.7
Length of DC cord (m)
3.5
Length of AC cord (m)
1.2
Length of Backup Safety Rope (m)
3.3
Capacity of Cleaning Solution (ml)
230
User Manual
1
Cleaning Solution
1
Number of Wiping Pad
2
Carabiner
1
Safety Rope
1
CONTENTS
WINBOT*1, Adapter*1, Safety Rope*1, Carabiner*1,Wiping Pad*2, Cleaning Solution*1, User Manual*1
WINBOT
1
Power Adapter
1
Net Weight of inner items (kg)
2.1
Gross Weight of Packaging (Kg)
2.8
Dimension of inner box (mm, L*W*H)
420*255*95

Instruction Manuals

DEEBOT X9 PRO OMNI.pdf
